CAPABILITIES / ASSEMBLY
Assembly: Make the interfaces work as a whole.
Turn separate parts into a defined deliverable. Specify what is assembled, what is supplied loose and how the interfaces will be checked.
CONTEXT / REQUIREMENTS
Understand the role in fabrication.
Assembly brings fabricated parts, hardware and purchased components together by bolting, welding or other specified connections. The bill of materials and drawing revision need to describe the same finished configuration.
A complete shop assembly may reduce site joining but create handling or transport constraints. Subassemblies may simplify delivery while adding field interfaces. Choose the breakdown with the installation sequence and acceptance checks in view.
APPLICATIONS / COMPONENTS
Where it fits the project.
Examples for scoping a project. Final suitability depends on the design and operating conditions.

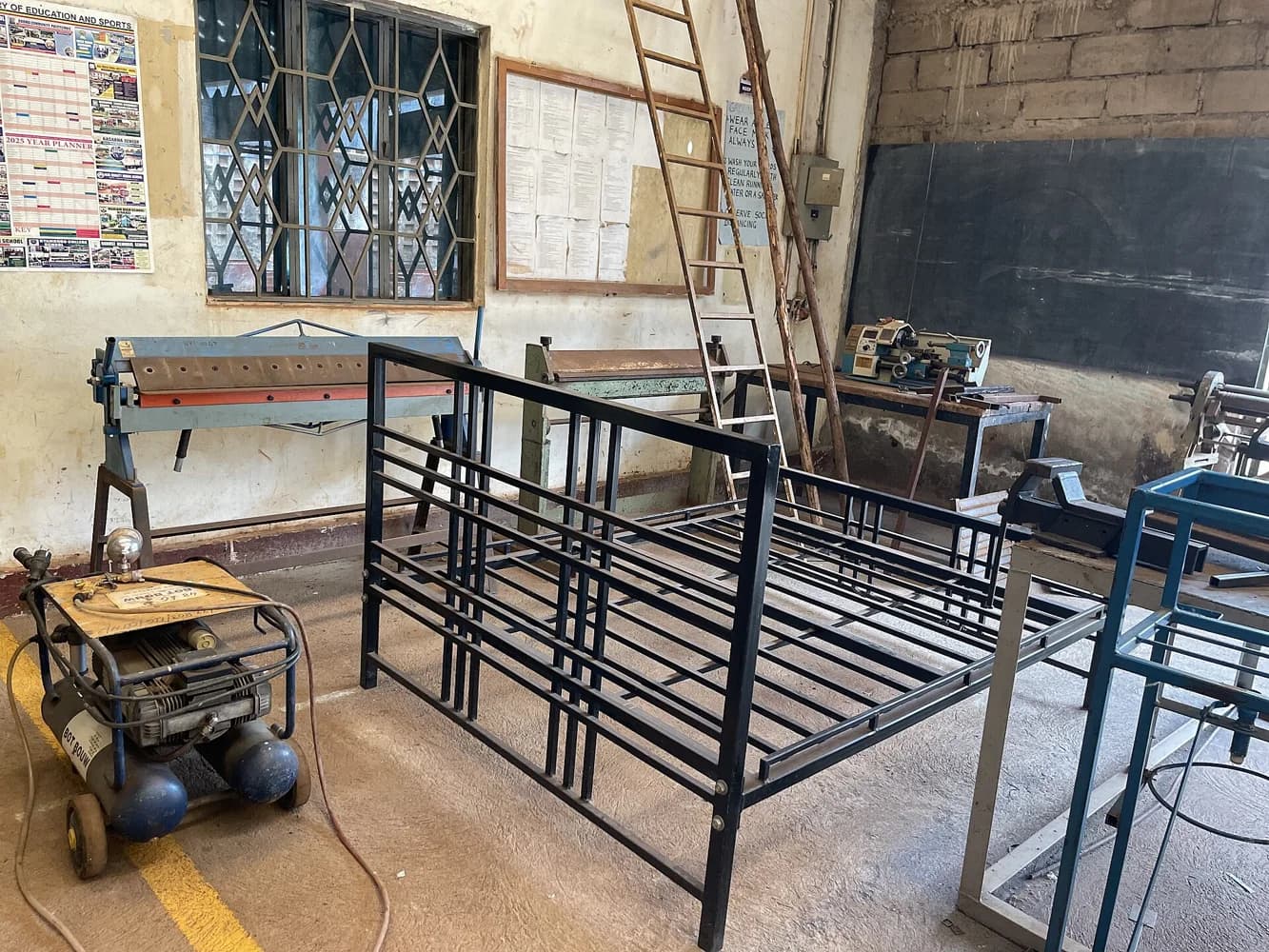

Equipment frames
Fabricated structures with mounting hardware and interface checks.
Enclosure assemblies
Bodies, doors, panels and specified hardware coordinated for fit.
Modular supports
Subassemblies with identified connections for later installation.
Custom fixtures
Multi-part components with adjustment, access and replacement considerations.
SPECIFICATION / REVIEW
Design considerations that shape the process.
Control the configuration
Provide part identifiers, quantities, hardware specifications and the governing assembly revision.
Define fit checks
Specify critical interfaces, trial assembly needs and acceptance responsibilities.
Plan handling and delivery
Identify delivery condition, removable parts, protection and any lifting or transport requirements for review.
CONNECTED PROCESSES
Complete the fabrication scope.
QUESTIONS / ANSWERS
Before you specify.
Will an assembly arrive ready to install?
The quotation should state the delivery condition and identify loose items, field connections and any adjustments required on site.
Can purchased hardware be included?
Provide the specification, quantities and whether substitutions are permitted. Supply responsibility and availability need to be agreed.
DEFINE YOUR PROJECT
Put assembly in the project brief.
Include the application, drawings, material preferences, quantities, delivery location and schedule. Identify inspection and installation requirements for review.
